Leather Fleshing Blades

Fleshing is one of the steps in Beamhouse operation after soaking and liming where connective tissue and meat residue are removed from the flesh side of the hide or skin. The operation of fleshing has evolved from hand tools to machine operated processes. Today, the fleshing operation is done by a Fleshing Machine where Spiral or Helical Fleshing Blades or Fleshing Strips, fitted on a cylinder is rotated at high speed against the flesh side of the hide to remove the unwanted subcutaneous materials.

Leather Fleshing Blades (or Strips for Fleshing Cylinder or Fleshing Strips) are used in tanneries for processing of raw hides. Labourcraft is the first company in India manufacturing these Spiral Blades since 1954 for processing of raw hides.

Material Composition: The Leather Fleshing Blades are manufactured from alloy steel with customised composition and specification. These Spiral Blades are supplied to a large number of tanneries around the globe. Special processes of heat treatment and formation of steel impart the blades with optimum hardness, lowest tolerance and longer knife life.

Quality Control: With over 6 decades of experience in this field, our Leather Fleshing Blades ensure complete customer satisfaction and adhere to international standards of quality.

Stringent in-house quality checks and control is maintained through all the steps of the manufacturing process, from choosing of the raw material to the fabrication of the finished product. This ensures strict adherence to international standards and matching fitment with machine and cylinder specifications of the original and refurbished equipment manufacturers.

Perfect fleshing can be performed without any unwanted marks on the precious skins and hides.

Manufacturing Process: Fleshing Strips are manufactured in CNC machines by an expert team of technically sound and experienced professionals maintaining highest precision and consistency. This ensures that precious hides and skins remain intact during the very first stage of leather processing and perfect fleshing can be performed without any undesirable marks. This is a hallmark feature of our spiral blades.

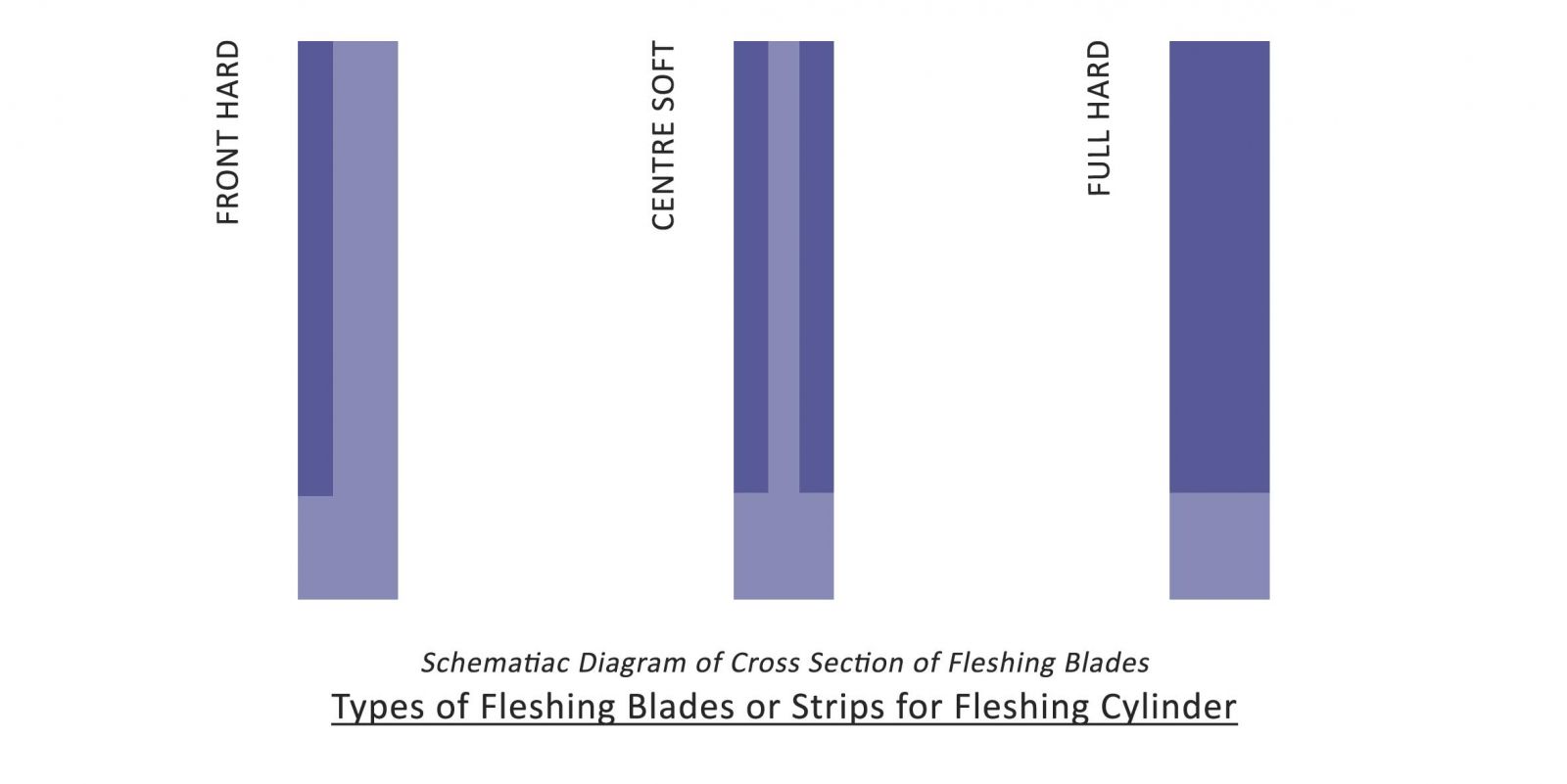

Types of Leather Fleshing Blades: Full Hard, Centre Soft and Front Hard Leather Fleshing Blades are manufactured by customising the manufacturing process. Their recommendation and usage depend on the type of hides, environmental conditions and the thickness of skins.

Types of Fleshing Blades or Strips for Fleshing Cylinder

Specifications: We manufacture fleshing blades according to the parameters and as per specification supplied by machine manufacturers, refurbishing agents or customers.

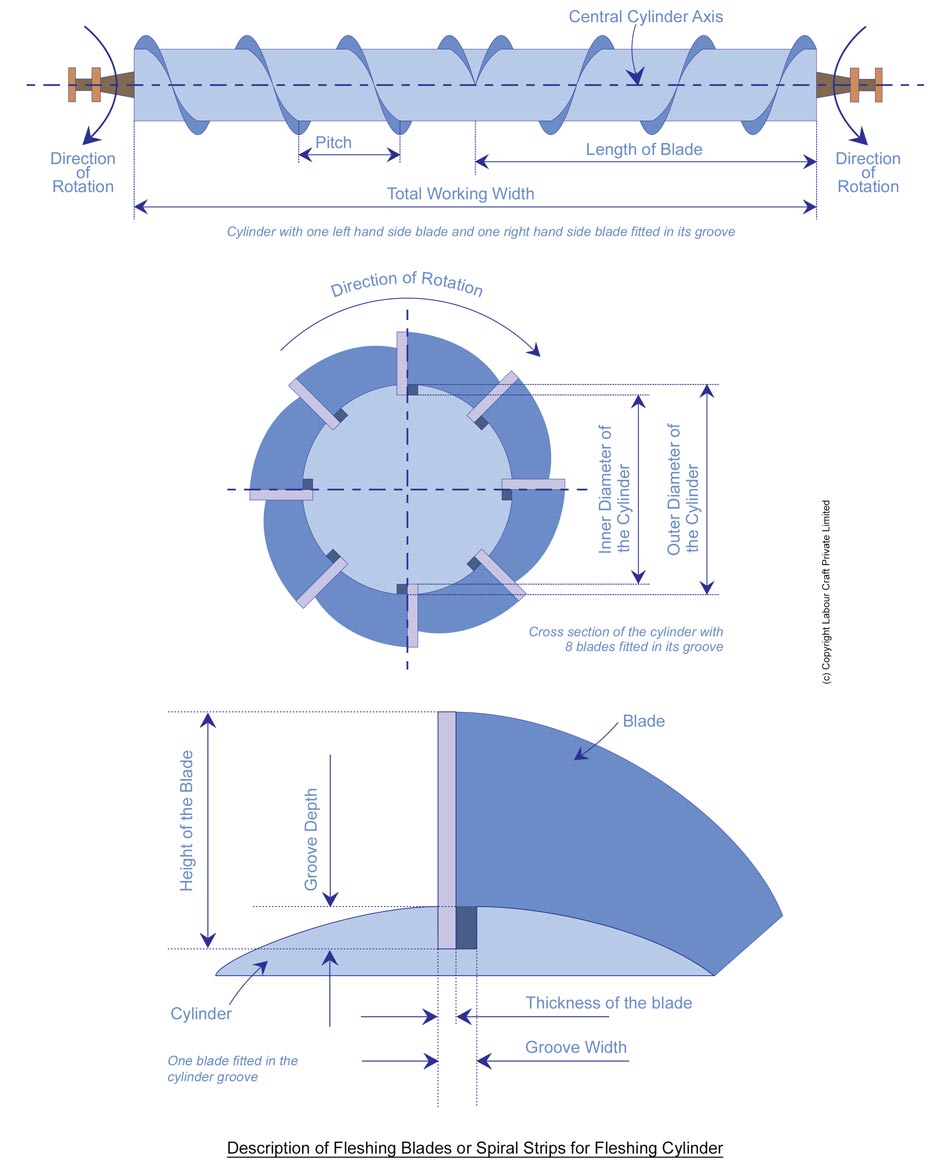

Fleshing Blades or Strips for Fleshing Cylinder

Parameters & Description Range
Total Working Width
It is the functional Length of the cylinder measured parallel to the central axis of the cylinder. Total Working Width also indicates the size of the Fleshing Machine. From 1200mm to 3300mm
Length of the Blade or Length on Cut
It is the length of the right or left hand side blade. The cylinder has right-handed and left-handed grooves cut into it. The right-handed grooves fits the blades of right hand windings and the left-handed grooves fits the blades of left hand windings. Though, Length on Cut should be half of Total Working Width, it exceeds by a small amount. This takes care of overlapping blades in the centre of the cylinder as well as ease of fitting. From 650mm to 1750mm
Number of Blades
The number of blades fitted on the left or right hand side grooves. Theu are equal. Fleshing cylinders of the same working width, diameter and pitch may have different number of grooves cut in each side of the cylinder. As per cylinder specification
Pitch
It is the distance from one point of the groove to the next corresponding point of the same groove measured parallel to the axis. The pitch of the blade matches the pitch of grooves of the cylinder. Pitch depended on the cylinder specification of the original or refurbished machine manufacturers. From 254mm to 660mm
Inner Diameter of the Cylinder or Diameter at the Bottom of the Groove
The diameter of the original cylinder without grooves is the Outer Diameter of the Cylinder. Grooves are cut in the Outer Diameter of the Cylinder. The new diameter thus formed, by measuring at the bottom of the grooves, is the Inner Diameter of the Cylinder. This is an essential measurement to fabricate the blades that fit in the bottom of the groove. Inner Diameter of the Cylinder or Diameter at the Bottom of the Groove is specified by original or refurbished machine manufacturers. From 110mm to 195mm
Thickness
The thickness of the blade at its outer diamter is less than the thickness of the blade at its inner diameter. This trapezoidal cross section aids in better cutting action during fleshing. From 2.2mm to 3.0mm
Hardness
The functional region of the blade has a uniform hardness. However, the hardness of the blades near its inner diameter is less than the rest of the blade. It ensures ease of removal during the process of reblading. 63 HRC
Type of Blade
We manufacture Full Hard, Centre Soft and Front Hard Fleshing Blades. All types perform smooth fleshing operations but its usage is based in environment, type and thickness of hides. Based on our recommendation


Research and Development: Constant research and development ensures ease of fitting and removal, increased life, hazard free operation, least fleshing cost per hide and above all, complete customer satisfaction.

Life of the Leather Fleshing Blades: The life of these blades is a function of hours of daily operation, quality of hides, tanning process, environmental conditions and operator’s experience.

Industry: The Leather Fleshing Blades are used in leather processing units or tanneries that process raw hides and skins.

We manufacture leather fleshing blades for all leather fleshing machines both new and refurbished manufactured across the globe. Our blades run perfectly on machines by Turner, Aletti, Svit, Moenus, Gozzini, Rizzi, Poletto, Kostroj, Pohlandt, CM, Aulson, Otto Baumb, Mercier, Polvora, Simi, Tannery Machinery, Quasha Corp., Taraknath, Bengal Engineering, Aulson, Hazra Engg. et al.

Guarantee: Our blades are backed by a 100% guarantee against any manufacturing defect. We are committed to our tradition of commitment and trust built for over six decades with our industrial clientele across the world.

Packaging: The blades are packed in wooden boxes and shipped as per instructions received from our customers.

Questions Answers
Would you like to know something more? Mail us at [email protected] or just drop us a message.
Would you like to know our prices? Just fill in your details or write to us at [email protected]
Please do not forget to mention the size and quantity of the blades.
Quotation of the Shaving Blades will be mailed to your submitted email address at the earliest.
Would you like to know which blades fit your cylinder? Check th manual of the machine supplied by the original or the refurbished machine manufacturer.
Did it help? No?
Do not worry.
Just check the file "Cylinder Measurement of Fleshing and Shaving Blades" in our 'Download' section.
If you still have a problem write to us at [email protected]
We are here to help you.
Would you like to order the blades? That's awesome.
Just fill in your details and submit the form.
You could mail us too at [email protected]
If, you are wondering which measurements to send us, just download "Measurement Sheet for Fleshing Blades" in the 'download' section fill in the details and send it back to us.
Would you like to join hands with us? We would be honoured if you would like to represent us in your country or region. Just fill in the form and send it back to us.


Your support means the world to us. Thank You for your time. Hope to work with you soon!

\
